Easy to use. Powerful in Production. Built for Small Business.

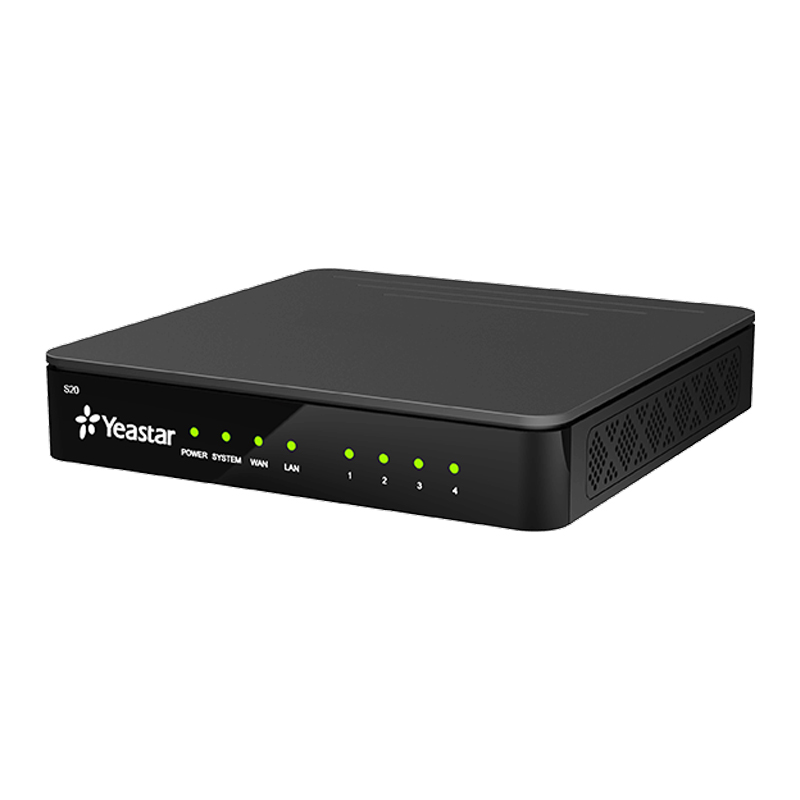

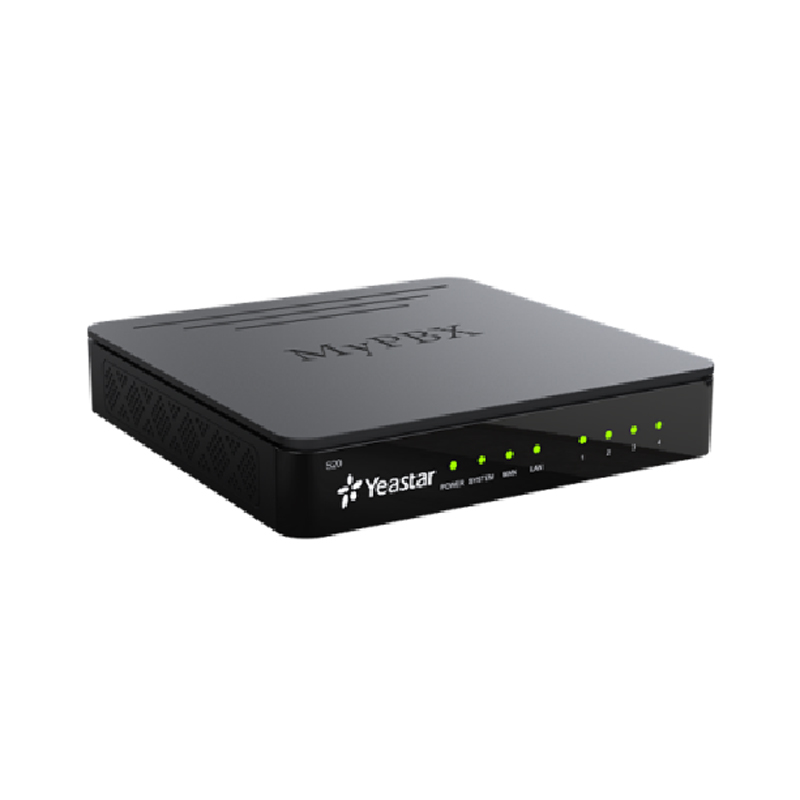

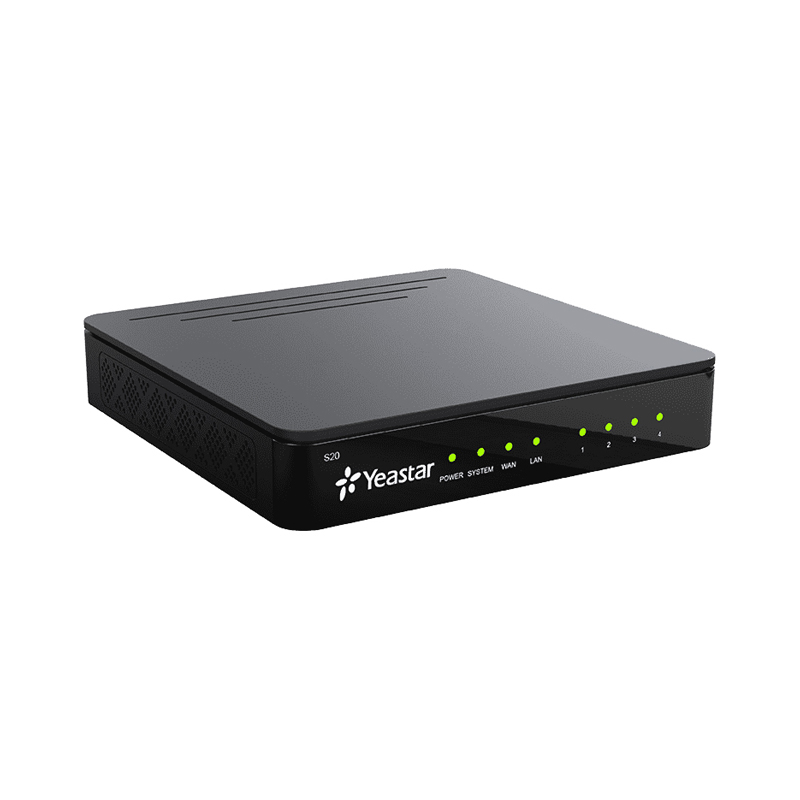

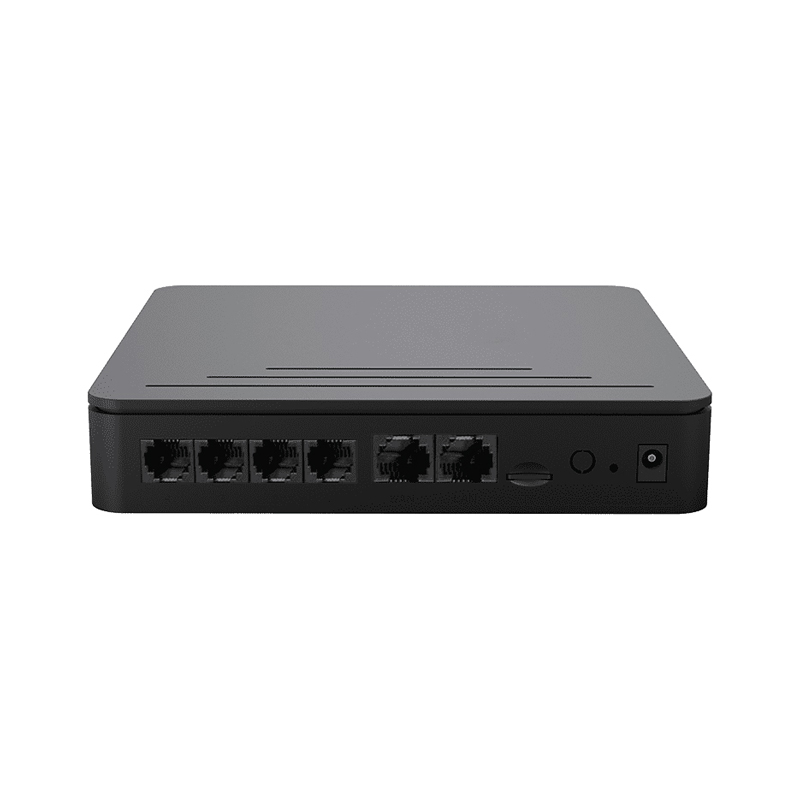

The Model - S20 Yeastar IP PBX is a compact entry-level small business phone system. It’s built to be simple to use and powerful in production. reliable and feature-rich PBX system.
· 20 SIP Users
· 10 Concurrent Calls

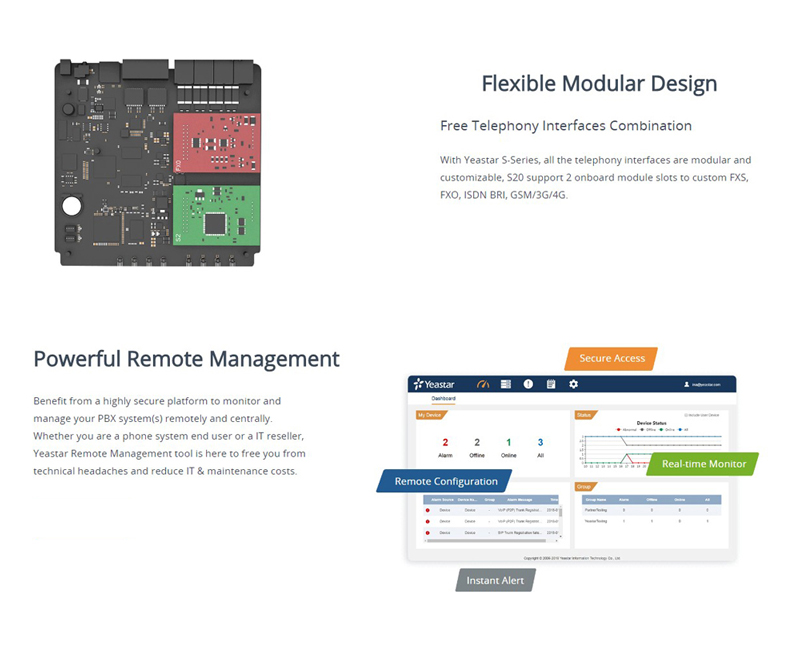

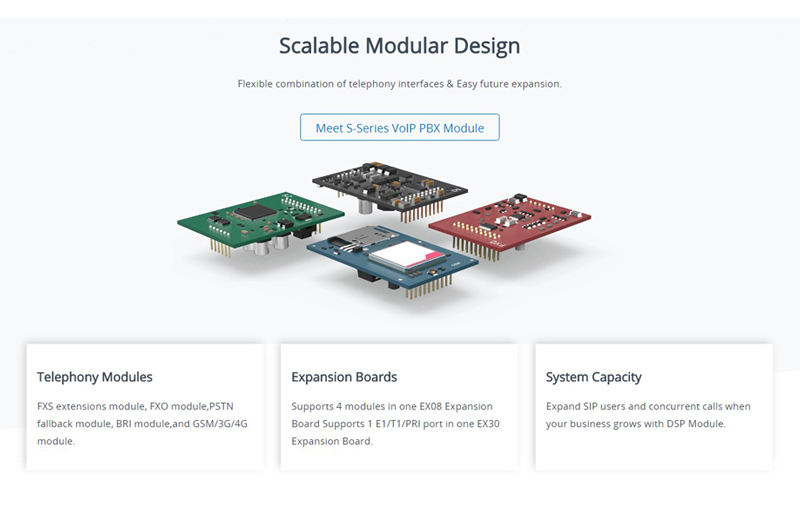

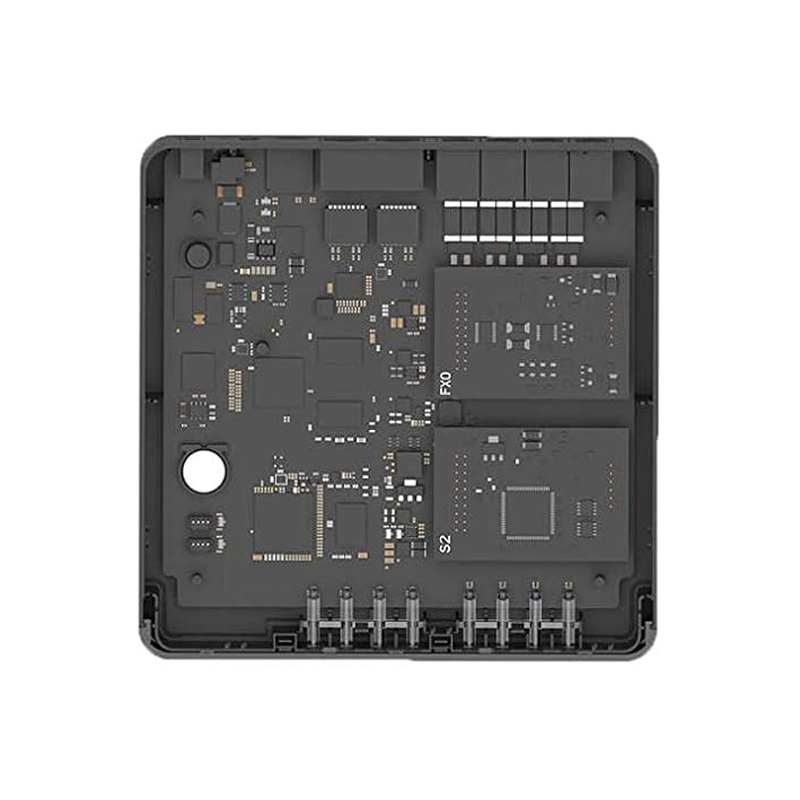

· Up to 4 FXO / FXS / BRI Ports
· Up to 1 GSM/3G/4G SIM Channel
· 20 VoIP Trunks
- Product Detail
- Inquiry
The PBX Server Capacity:
| Number of sip users: 20 |
| Number of concurrent calls (maximum): 10 |
| External/internal port (maximum value): 4 |
| Mobile SIM card port (maximum value): 1 |
| E1 digital relay (maximum value): - |
Voice message capacity: 5000 minutes (expandable) Recording capacity expansion: TF card |
VoIP Feture:
| VoIP external line : 20 |
| Protocol : SIP(RFC3261), IAX2 |
| Transport Protocol : UDP, TCP, TLS, SRTP |
| Voice Codec : G711(alaw/ulaw), G722, G726, G729A, GSM, Speex, ADPCM |
| Video Codec : H261, H263, H263P, H264, MPEG4 |
DTMF : In-band, RFC4733, RFC2833, SIP INFO |

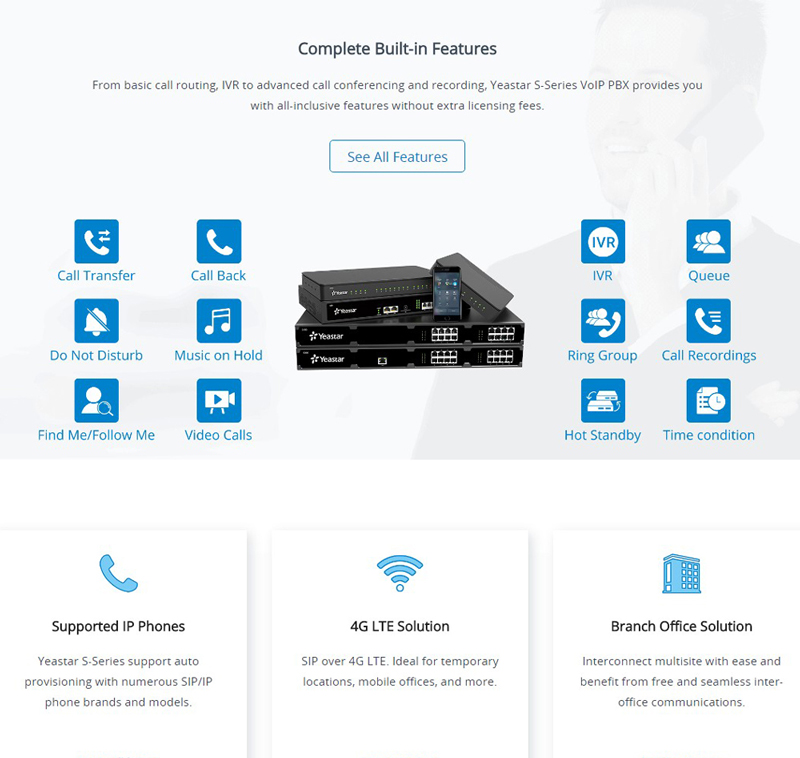

The PBX Server Function:
Call back / Call parking / Video call / Combining Skype / Voice message forwarding Speed dial / Call waiting / Automatic phone operator / PIN Code list / Voice message to email Blind transfer / Call routing / Call ID / External to External(DISA) / Intelligent call in matching Consultation transfer / Hold music / Call record / LDAP directory / Permission list Line up / One key recording / Automatic configuration / Broadcast(Broadcast Team) Linkus software / Ringing Group / Automatic recording / One Number for Multi-Machine Ringing Group / Automatic recording / One Number for Multi-Machine / Intercom(intercom group) Email to SMS(SMS to Email) / Monitor listen / Three-Way Calling / Firewall / Dial recognition(DNIS) Custom prompt sound / Not disturb / Conference call / IP blacklist / Dial by name / Fax to email Multilingual system prompt / call forwarding / Featured Ringing / Event center / Call interception Extension user management interface / Mobile Extension / Call charging / Fax (T.30/T.38) Call charging / Voice message / Multi language web configuration interface / hot standby |
Physics Feture:
| 1-WAN口: 1×10/100Mbps, 1-LAN口: 1×10/100Mbps |
| Network support: Static IP, PPPoE, DHCP Server, DHCP Client, Firewall, VLAN, DDNS, QoS, VPN, STU |
Power Adapter: DC 12V, 1A （power-1.8~10.6W ) 1-TF Card Slot ( Max 32GB ) Product size: 160x160x30mm |
|
