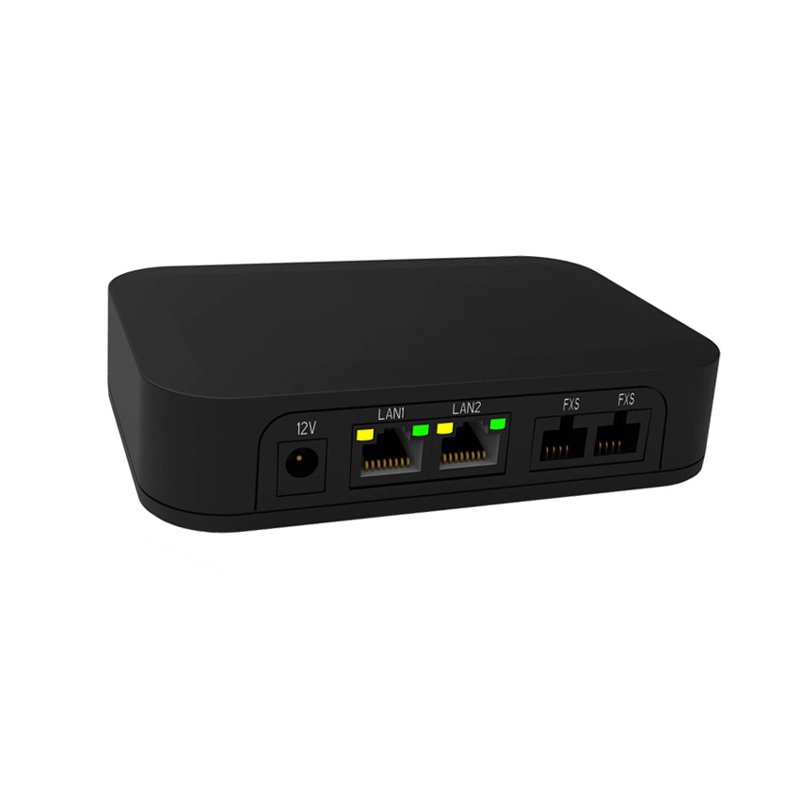

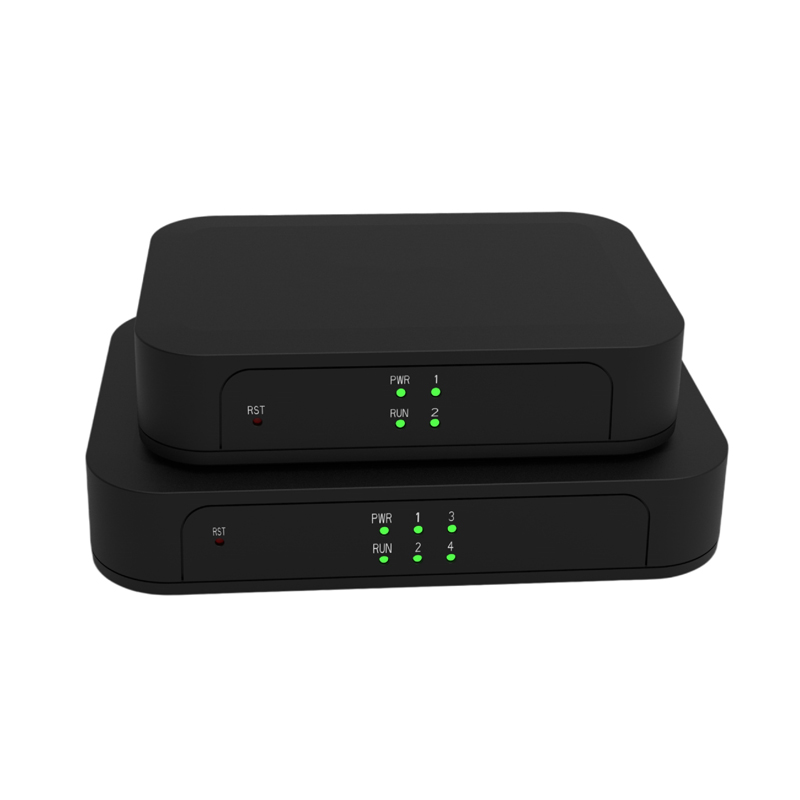

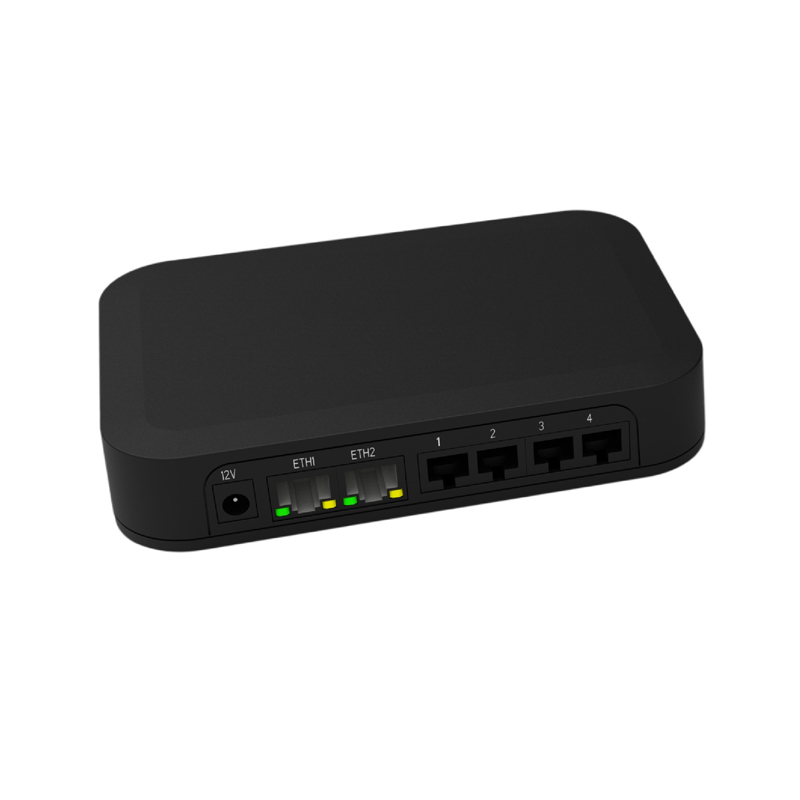

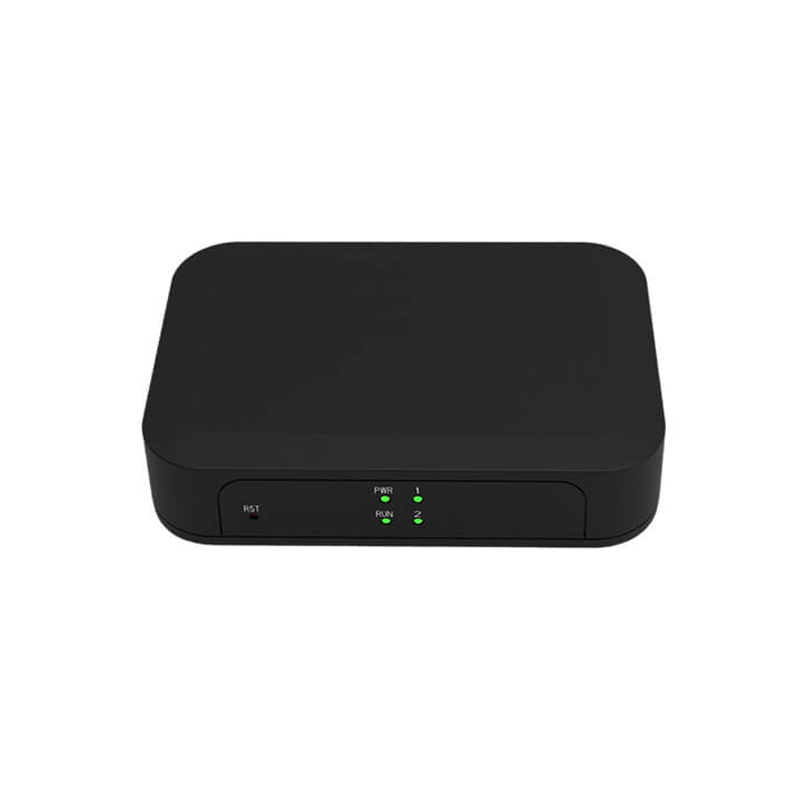

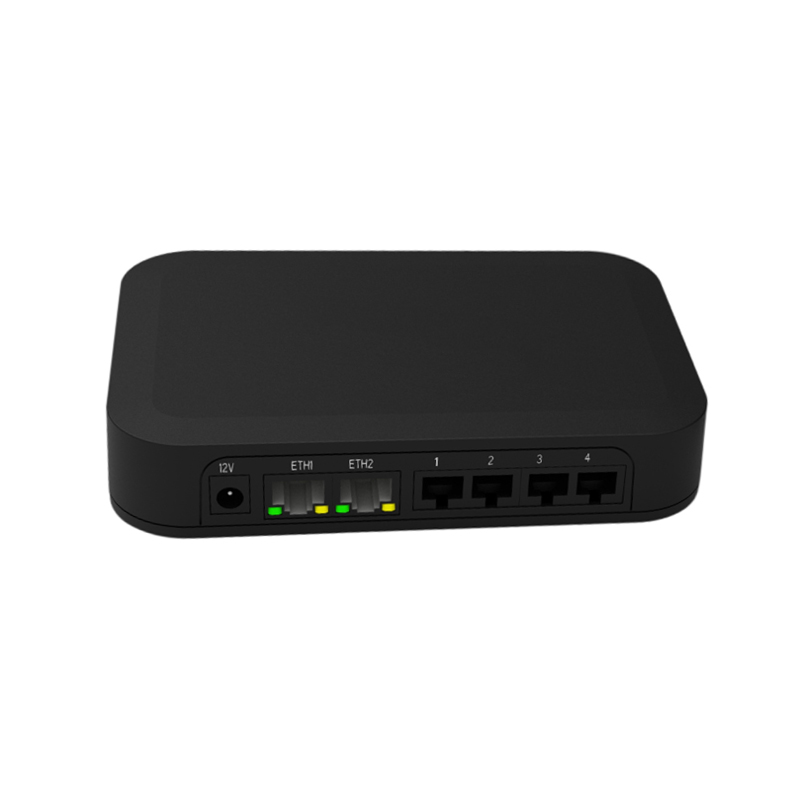

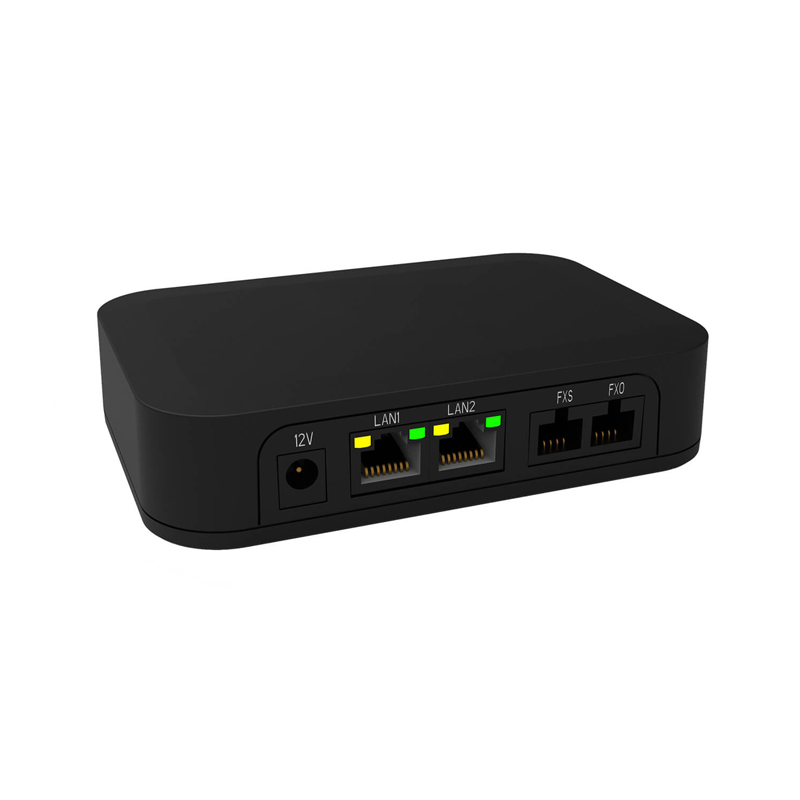

Proolin IAD200/400 Series Analog Gateway, is specially designed for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily setup their customized gateway. Also secondary development can be completed through AMI (Asterisk Management Interface).

The IAD200/400 Series Analog Gateways are developed for interconnecting a wide selection of codecs including G.711A, G.711U, G.729A, G.722, G.726, iLBC. It use standard SIP protocol and compatible with leading VoIP platform, IPPBX and SIP servers, such as Asterisk, Issabel, 3CX, FreeSWITCH ,BroadSoft and VOS VoIP operating platform.

System Features

● NTP time synchronization and client time synchronization

● Support modify username and password for web login

● Update firmware online, backup/restore configuration file

● Abundant Log Info, Automatically Reboot, Call status display

● Language selection (Chinese/English)

● Open API interface (AMI), support for custom scripts, dialplans

● Support SSH remote operation and restore the factory settings

Telephony Features

● Support Volume adjustment, Gain adjustment, call transfer, call hold,  call waiting, call forward, Caller ID display

● Three way calling, Call transfer, Dial-up matching table

● Support T.38 fax relay and T.30 fax transparent, FSK and DTMF signaling

● Support Ring cadence and frequency setting, WMI (Message Waiting Indicator)

● Support Echo cancellation, Jitter buffer

● Support customizable DISA and other applications

SIP Features

● Support add, modify & delete SIP Accounts ,batch add, modify & delete SIP Accounts

● Support multiple SIP registrations : Anonymous, Endpoint registers with this gateway, This gateway registers with the endpoint

● SIP accounts can be registered to multiple servers

Network

● Network type：Static IP, Dynamic

● Support DDNS, DNS, DHCP, DTMF relay, NAT

● Telnet, HTTP, HTTPS, SSH

● VPN clients：PPTP/OpenVPN/Zerotier/L2TP/N2N (Not available for Russia)

● Network Toolbox
